Automatic Flute laminating machine

FM-1300D, FM-1450D, FM1600D

This machine suitable for color top sheet and corrugated paper laminating.

Top paper adopt scale continuous paper feeding,unique front gauge positioning way to insure the bottom paper never exceed.Easy operation and maintenance.

Technical Parameter

FM-C Semi-automatic Flute Laminating Machine
Model FM-1300D FM-1450D FM-1600D
Max. Sheet Size (mm) 1300×1250 1450×1250 1600×1250
Min. Sheet Size (mm) 450×450 450×450 450×450
Top Sheet Thickness (g/m2) 150-600 150-600 150-600
Bottom Paper Sheet Thickness (mm) 0.5-10 0.5-10 0.5-10
Bottom Corrugated Sheet Thickness A,B,C,E,F Corrugated Paper, Industrial Paperboard
Max. Speed 7000sheet/hour 7000sheet/hour 7000sheet/hour
Fitting Precision ±1mm ±1mm ±1mm
Voltage (V) 380 380 380
Total Power (kW) 10 11 12
Measurement (mm) 11500x1850x1850 11500x2000x1850 11500x2200x1850
Weight (ton) 5 5.5 6

Feature Introduction

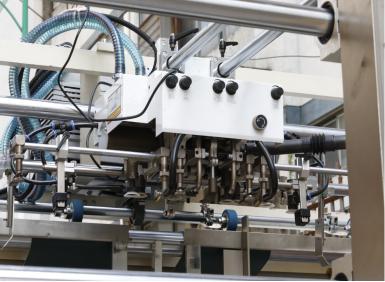

Top Sheet Feeding Mechanism

High precision high speed automatic feeder,feeding smoothly.

Strengthening type paper feeding device,nozzle angle is adjustable,suitable for different type of papers.

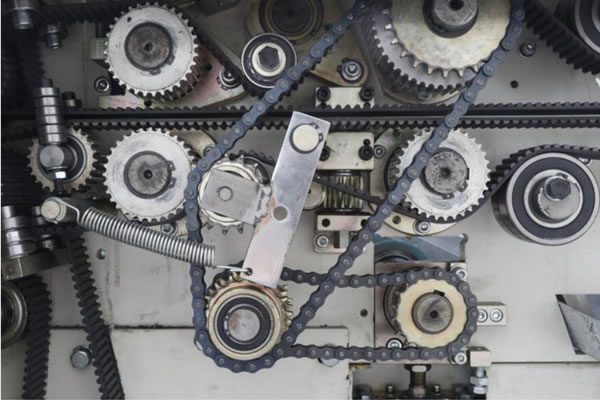

Transmission

With double teeth belt drive and tension device ensure the drive accurate,stable and low noisy.

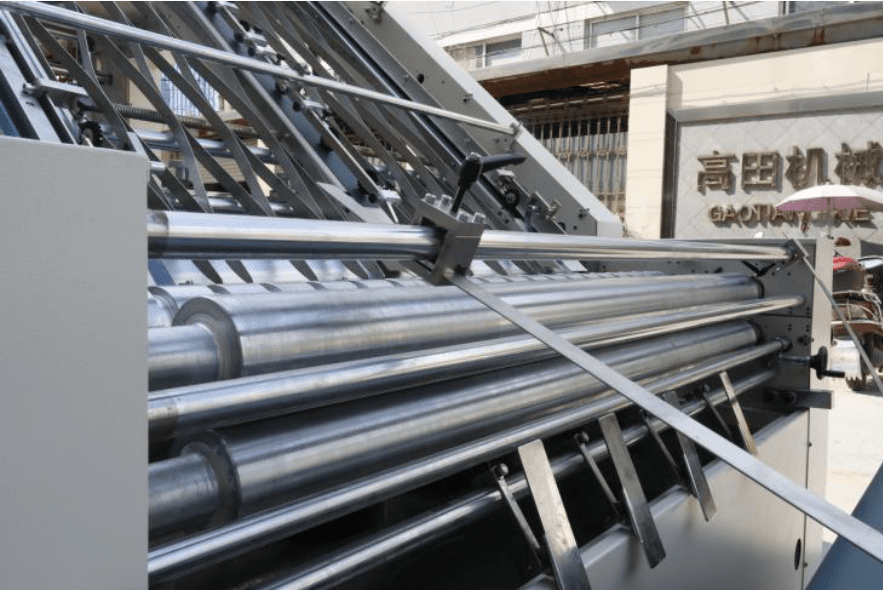

Side Positioning

Side gauge positioning,error correction for about top paper stack and feeding process.

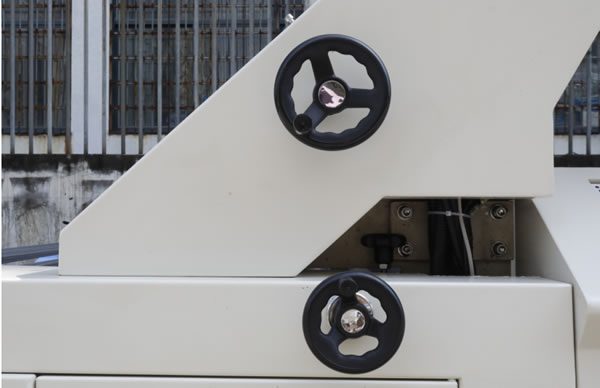

Pressure Regulation Positioning

Single pressure regulation,to ensure that the two side pressure be same

With the display of dial gauga, it is easy to adjust when change the paper.

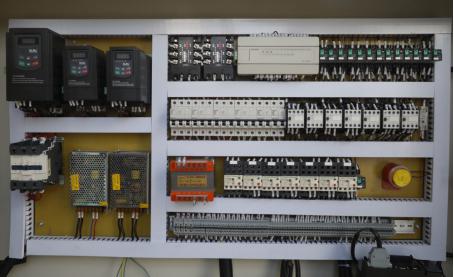

Electrical System

Designed in the accordance with European CE requirement,ensure machine stability ,high efficiency and low failure.Using man-machine interface and PLC combination,display all the information,such as warning,error detect,failures,and operating speed,etc on the screen at a glance.

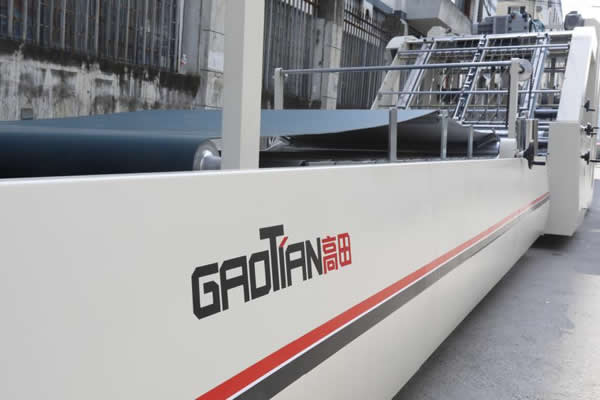

Press Part

Floating design of press,no need to adjust the pressure heightening design,smooth working for thick corrugated paperboard.
