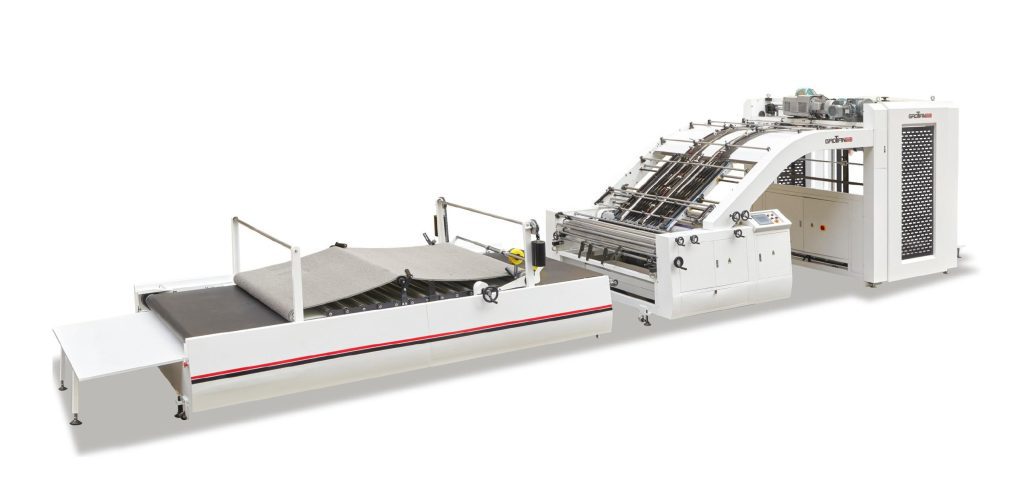

FM-1300D, FM-1450D, FM1650D
This machine suitable for color top sheet and corrugated paper laminating.
Top paper adopt scale continuous paper feeding, unique front gauge positioning way to insure the bottom paper never exceed. Easy operation and maintenance.
Technical Parameters:
| FM-D Automatic Flute Laminating Machine | |||
| Model | FM-1300D | FM-1450D | FM-1650D |
| Max. Sheet Size (mm) | 1300×1250 | 1450×1250 | 1600×1250 |
| Min. Sheet Size (mm) | 370×370 | 370×370 | 370×370 |
| Top Sheet Thickness (g/m2) | 150-600 | 150-600 | 150-600 |
| Bottom Paper Sheet Thickness (mm) | 0.5-10 | 0.5-10 | 0.5-10 |
| Bottom Corrugated Sheet Thickness | A,B,C,E,F Corrugated Paper, Industrial Paperboard | ||
| Max. Speed | 7000sheet/hour | 7000sheet/hour | 7000sheet/hour |
| Fitting Precision | ±1mm | ±1mm | ±1mm |
| Total Power (kW) | 13 | 14 | 15 |
| Measurement (mm) | 11500x2200x2600 | 11500x2350x2600 | 11500x2500x2600 |
| Weight (ton) | 5 | 5.5 | 6 |
Technical Information is Subject to Change Without Notice.
