FM-1450GS FM-1600GS

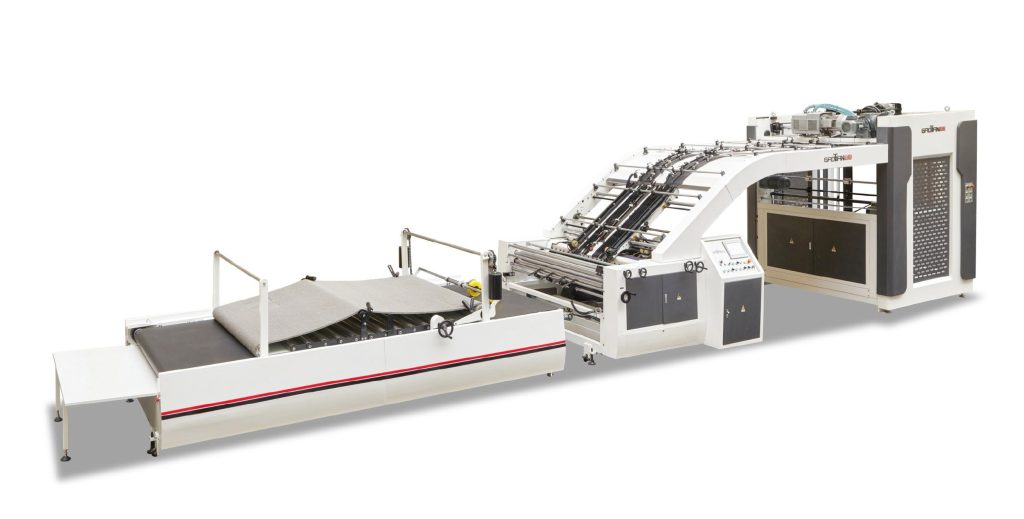

FM-GS Automatic High Speed Flute Laminating Machine

This machine suitable for color top sheet and corrugated paper laminating.
This machine use bottom sheet automatic sent by suction device. Top paper adopt scale continuous paper feeding, top sheet left and right all course correction, unique front gauge positioning way to insure the bottom paper never exceed. Easy operation and maintenance.

Technical Parameters:

Model FM-1450GS FM-1650GS
Max. Sheet Size (mm) 1450×1250 1450×1250
Min. Sheet Size (mm) 450×450 450×450
Top Sheet Thickness (g/m2) 150-600 150-600
Bottom Paper Sheet Thickness (mm) 0.5-10 0.5-10
Bottom Corrugated Sheet Thickness A,B,C,E,F Corrugated Paper, Industrial Paperboard
Max. Speed 12000sheet/hour 12000sheet/hour
Fitting Precision ±1mm ±1mm
Total Power (kW) 18 20
Measurement (mm) 14300x2350x1850 14300x2500x1850
Weight (ton) 6 6.5
Glue Application White Glue, Starch Glue
