Semi-automatic Flute laminating machine

FM-1300C, FM-1450C, FM1600C

This machine use bottom sheet automatic sent by suction device,and top sheet feeding manually.This humanized design makes paper feeding easier and more efficient.It is suitable for color top sheet and corrugated paper laminating,color top sheet and grey cardboard laminating.

Technical Parameter

FM-C Semi-automatic Flute Laminating Machine
Model FM-1300C FM-1450C FM-1600C
Max. Sheet Size (mm) 1300×1100 1450×1100 1600×1100
Min. Sheet Size (mm) 450×450 450×450 450×450
Top Sheet Thickness (g/m2) 200-1100 200-1100 200-1100
Bottom Paper Sheet Thickness (mm) 0.5-10 0.5-10 0.5-10
Bottom Corrugated Sheet Thickness (mm) 0.5-10 0.5-10 0.5-10
Speed (m/min) 0-90 0-90 0-90
Voltage (V) 380 380 380
Total Power (kW) 7.5 8 8
Measurement (mm) 9300x2000x1810 9300x2200x1810 9300x2400x1810
Weight (ton) 4.9 5.5 6.5

Feature Introduction

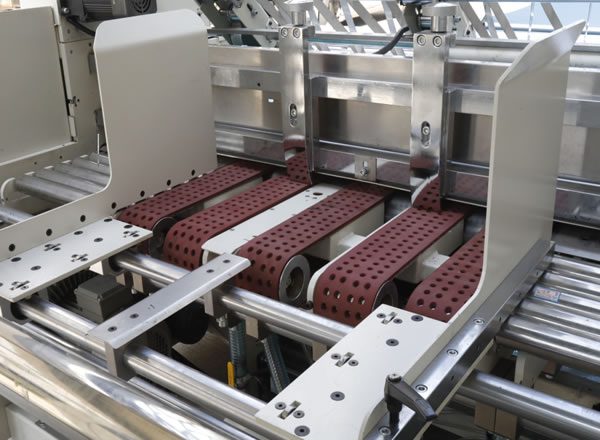

Bottom Sheet Feeding

Use servo motor electrical controlling system,with suction belt to make suction power inverter, and belt cleaned by water roller,patented technology to ensure corrugated and cardboard goes out smoothly and simple operation.

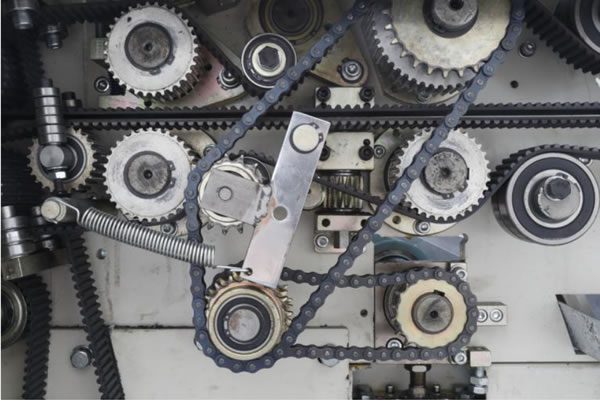

Transmission

With double teeth belt drive and tension device ensure the drive accurate,stable and low noisy.

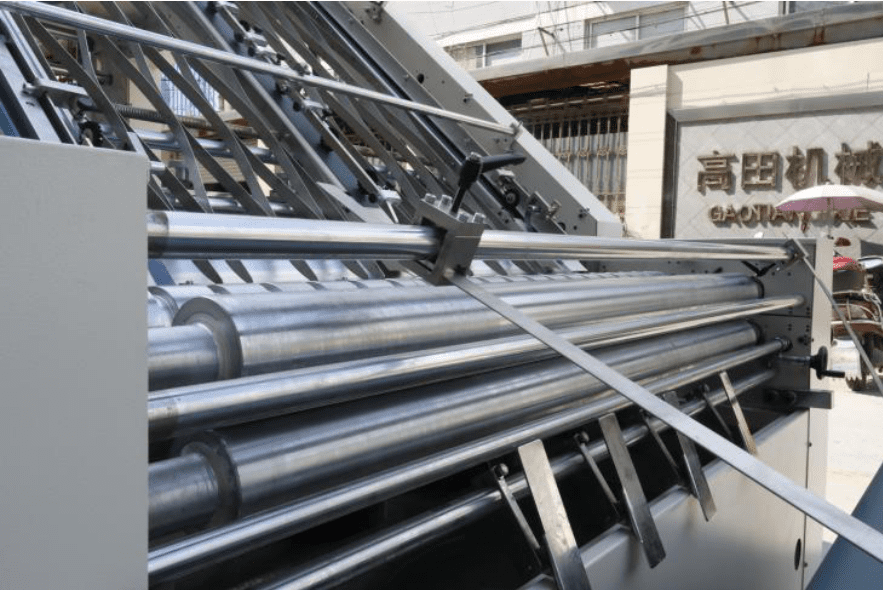

Side Positioning

Side gauge positioning,error correction for about top paper stack and feeding process.

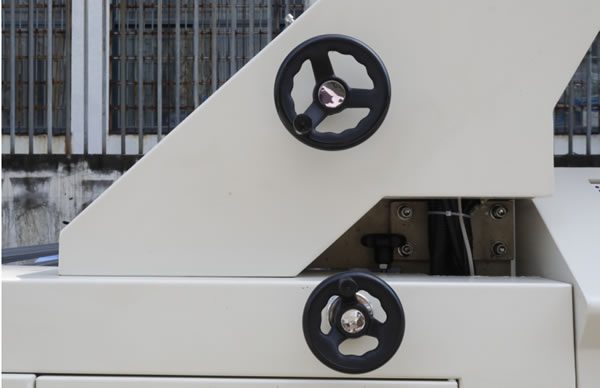

Pressure Regulation Positioning

Single pressure regulation,to ensure that the two side pressure be same

With the display of dial gauga, it is easy to adjust when change the paper.

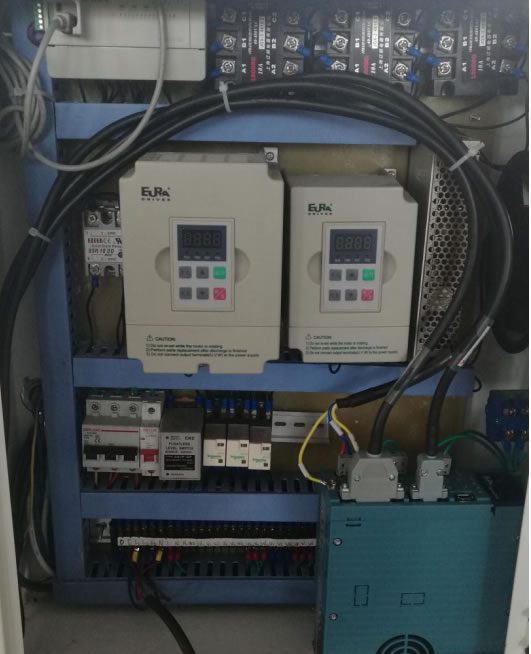

Electrical System

Designed in the accordance with European CE requirement,ensure machine stability ,high efficiency and low failure.Using man-machine interface and PLC combination,display all the information,such as warning,error detect,failures,and operating speed,etc on the screen at a glance.

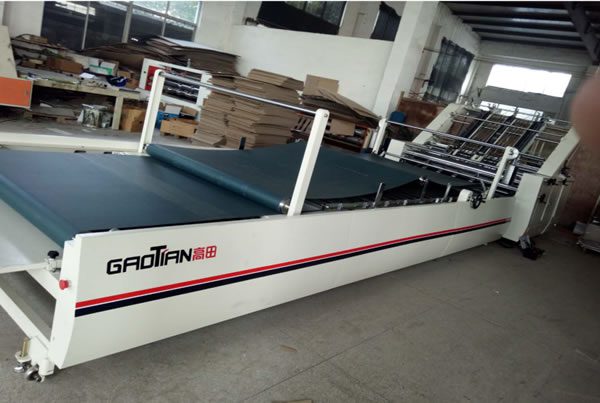

Press Part

Floating design of press,no need to adjust the pressure heightening design,smooth working for thick corrugated paperboard.
