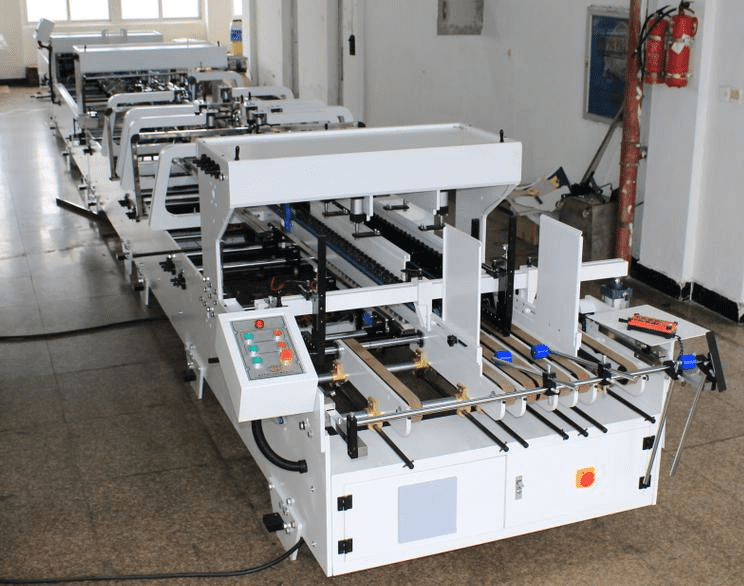

SHH-1050FS folder gluer machine with 4/6 corner function,each set is controlled by independent motor,adopts electrical regulating board,PLC,imported electronic components,three plates track mode device.Aluminum plates are all chute structure,which is easy to add spare parts.The machine is especially designed for all kinds of 4/6 corner cardboard or corrugated packaging boxes,which can meet to all kinds of requirements of automatic packaging area.
Characteristics
| Model | SHH-1050FS |
| Paper Material | 200-800g cardboard and E, F corrugated paper. |
| Max. Liner speed | Max.250m/min |
| Feeding Way | Automatically and continuously feeding. |
| Way of Folding in reverse | Fold 1 and fold 3 are 180 degree and 135 degree Fold 2 and fold 4 are 180 degree Bottom folded and glued 4&6 corner |
| Glue Material | Water-base cold glue. |
| Electric Power | 3P 380V 50Hz |
| Main Power | 11kW |
| Weight | 5.5T |
| Over Dimension | 15×1.6×1.4m |
Technical Parameter
| Four corner box type and size (mm) | |
| Model | SHH-1050FS |
| A | 190 – 1000 |
| B | 130 – 800 |
| C | 30 – 150 |
| D | 130 – 750 |
| Six corner box type and size (mm) | |
| Model | SHH-1050FS |
| A | 290 – 1000 |
| B | 130 – 800 |
| C | 30 – 150 |
| D | 100 – 500 |
| Lock bottom carton type and folded box size：(mm) | |
| Model | SHH-1050FS |
| A | 200-600 |
| B | 250-850 |
| C | Min:15 |
| D | Min:80 |
| F | Min:130 |

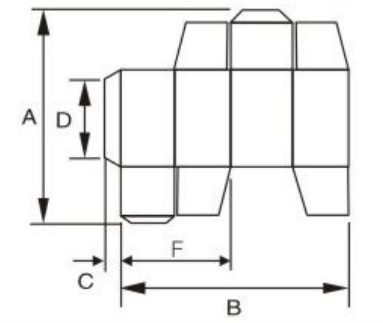

| Common box type and size：(mm) | |
| Model | SHH-1050FS |
| A | 150-700 |
| B | 280-1000 |
| C | Min:15 |
| D | Min:80 |
| F | Min:130 |

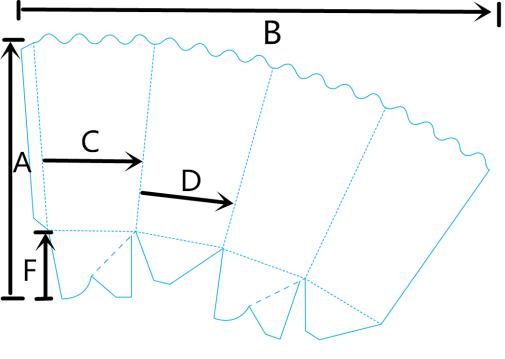

| Pop corn box type and size:(mm) | |
| Model | SHH-1050FS |
| A | 150-600mm |
| B | 180-950mm |
| C(min) | 40mm |
| D(min) | 35mm |
| F(min) | 20mm |

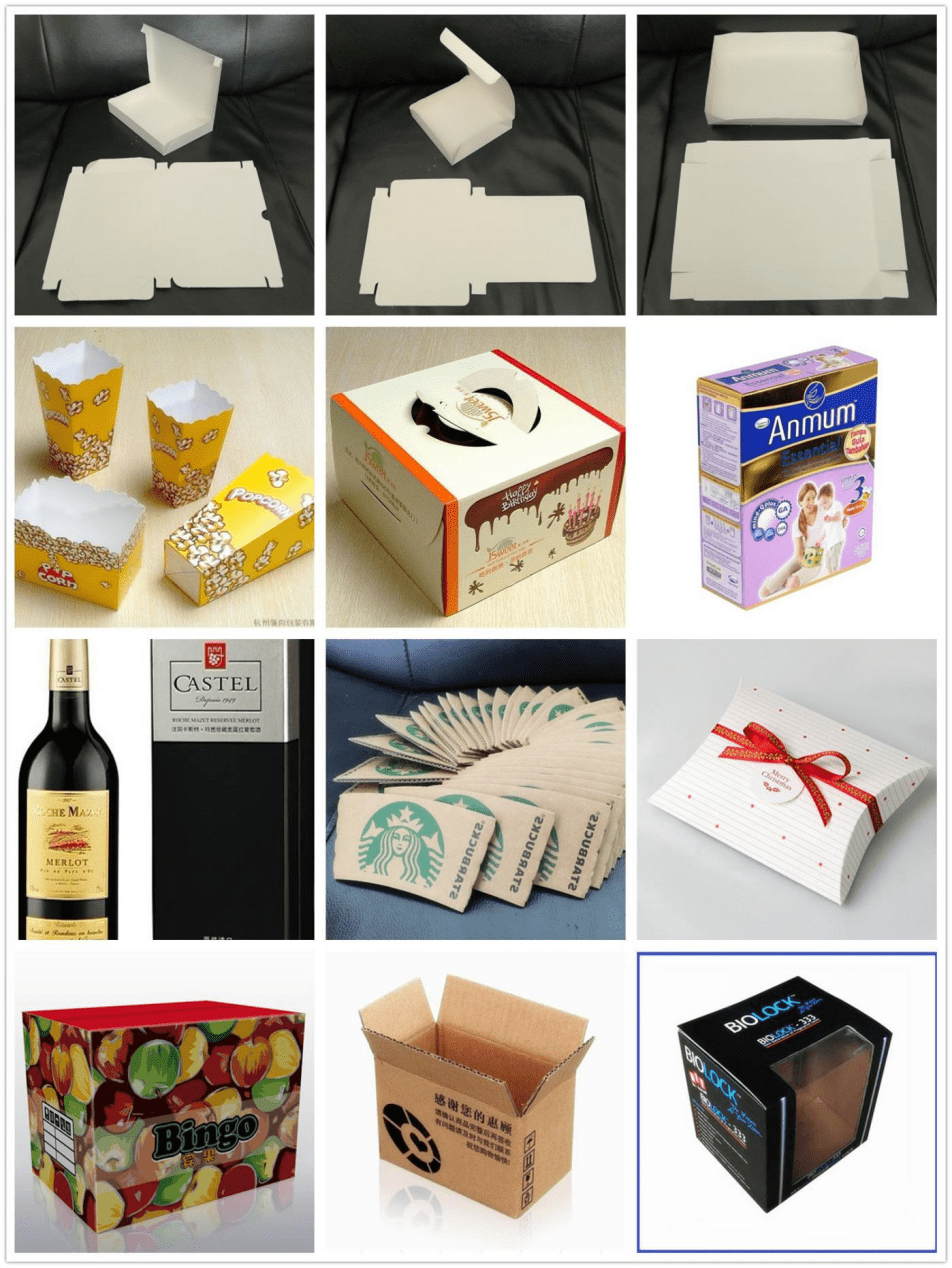

Sample Box
