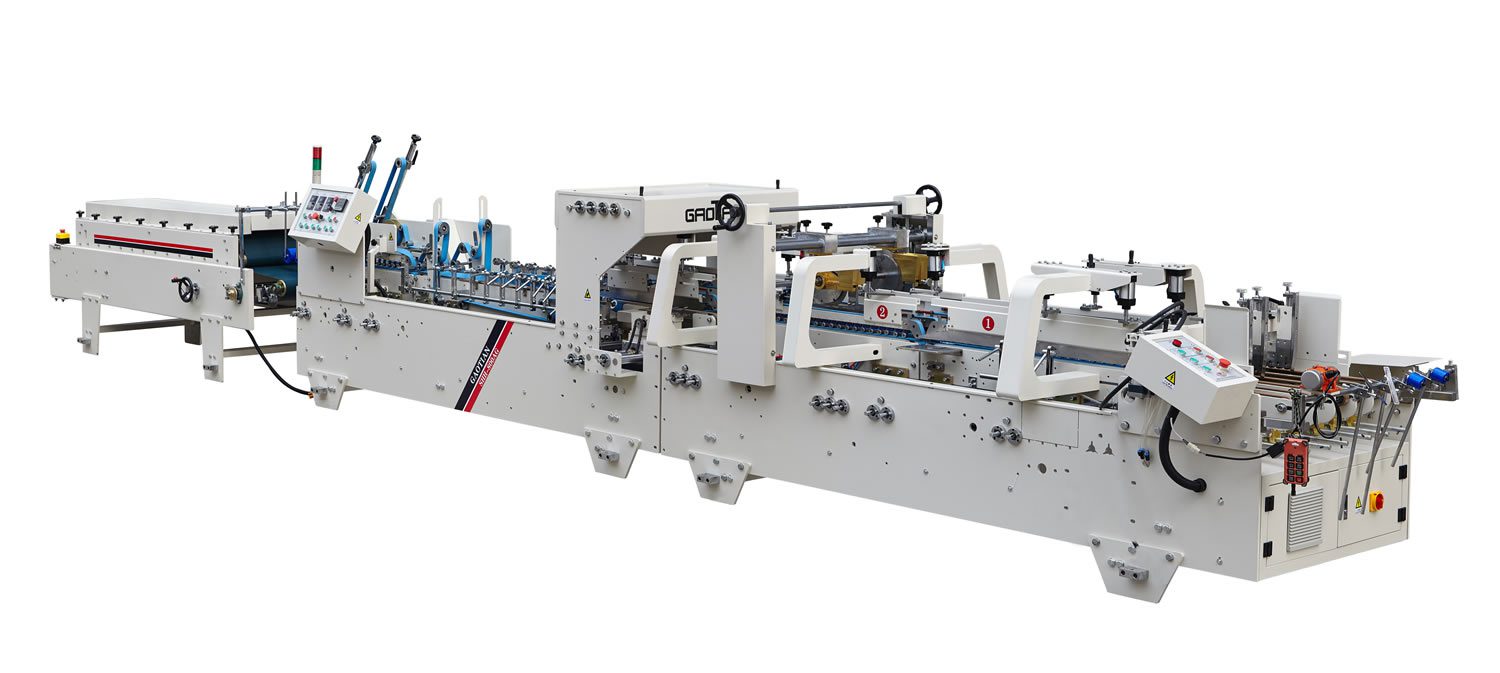

SHH-800AG, SHH-600AG
This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box and bottom edging box.
It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons.Pre-fold section is applied to auto packaging, fold 1 and fold 3 of all cartons can reach 180° and 135° ,perfectly combing the requirements of auto packaging together.
Characteristics
| Model | SHH-800AG, SHH-600AG |
| Paper Material | 200-800 gsm cardboard and E, F corrugated paper. |
| Max. Liner speed | 220m/min |
| Feeding Way | Automatically and continuously feeding. |
| Way of Folding in reverse | Fold 1 and fold 3 are 180 degree and 135 degree. Fold 2 and fold 4 are 180 degree. |
| Glue Material | Water-base cold glue. |
| Electric Power | 3P 380V 50Hz |
| Main Power | 7kW |
| Weight | 2.4T, 2.2T |
| Over Dimension | 11×1.3×1.4m, 11×1.1×1.4m |
Technical Parameter
| Lock Bottom Carton Type and Folded Box Size | ||||
| Model | SHH-800AG | SHH-600AG | ||
| Paper Material | Cardboard | E/F Corrugated Paper | Cardboard | E/F Corrugated Paper |
| A | 150-600mm | 150-550mm | 150-600mm | 150-550mm |
| B | 200-750mm | 200-750mm | 200-550mm | 200-550mm |
| C | Min.: 10mm | Min.: 10mm | Min.: 10mm | Min.: 10mm |
| D | MIn.: 70mm | MIn.: 120mm | MIn.: 70mm | MIn.: 120mm |
| F | Min.: 80mm | Min.: 100mm | Min.: 80mm | Min.: 100mm |
| Common Box Type and Size | ||||
| Model | SHH-800AG | SHH-600AG | ||
| Paper Material | Cardboard | E/F Corrugated Paper | Cardboard | E/F Corrugated Paper |
| A | 120-700mm | 150-550mm | 120-700mm | 120-600mm |
| B | 120-780mm | 200-750mm | 120-580mm | 180-600mm |
| C | Min.: 10mm | Min.: 10mm | Min.: 10mm | Min.: 10mm |
| D | MIn.: 50mm | MIn.: 100mm | MIn.: 50mm | MIn.: 100mm |
| F | Min.: 50mm | Min.: 75mm | Min.: 50mm | Min.: 75mm |
