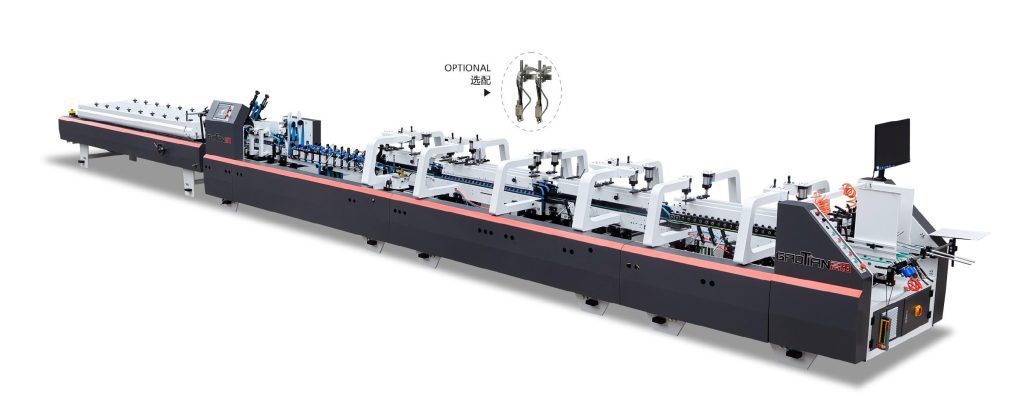

SHH-600AK-J, SHH-800AK-J
Characteristics
| Model | SHH-600AK-J | SHH-800AK-J | SHH-800AK-J |
| Carton Type | Paperboard | Paperboard | E, F Corrugated Paper |
| A+B+C+D | 200-550mm | 200-750mm | 200-750mm |
| C+D Min. | 100mm | 100mm | 100mm |
| D Min. | 25mm | 25mm | 25mm |
| F Min. | 70mm | 70mm | 70mm |
| G | 150-600mm | 150-600mm | 150-580mm |
| H Min. | 25mm | 25mm | 25mm |
| Model | SHH-600AK-J | SHH-800AK-J | SHH-800AK-J |
| Carton Type | Paperboard | Paperboard | E, F Corrugated Paper |
| A+B+C+D | 100-580mm | 150-780mm | 180-680mm |
| C+D Min. | 50mm | 70mm | 90mm |
| D Min. | 8mm | 8mm | 8mm |
| F Min. | 50mm | 50mm | 50mm |
| G | 70-700mm | 70-700mm | 150-580mm |
Technical Parameter
| Model | SHH-600AK-J | SHH-800AK-J |
| Max. Liner Speed | 280m/min | 280m/min |
| Applicable Paper Materials | 200-800g Paperboard and E, F Corrugated Paper | |
| Way of Folding in Reverse | The first and third folds are 180 degrees and 135 degrees respectively.
Second and fourth fold 180 degrees |
|
| Glue Material | Solute Type | |
| Electric Power | 3P, 380V, 50Hz | |
| Main Power | 7.5kW | 7.5kW |
| Weight | 3.6T | 3.8T |
| Over Dimension (m) | 12.5×1.3×1.4 | 12.5×1.5×1.4 |
