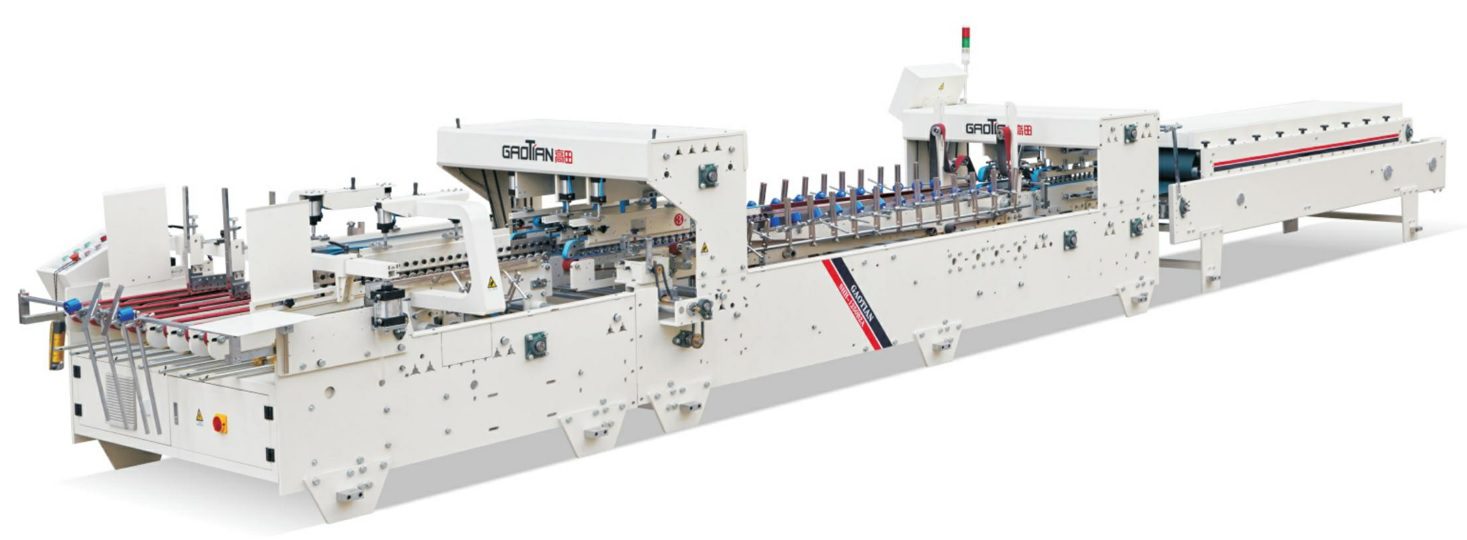

SHH-B2 Series Automatic Corrugated Carton Box Folder Gluer

SHH-1050B2, SHH-1250B2, SHH-1450B2, SHH-1650B2, SHH-1850B2, SHH-2050B2

This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box.

It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons.perfectly combing the requirements of auto packaging together.

Characteristics

Model SHH-1050/1250/1450/1650/1850/2050B2
Paper Material 200-800 gsm cardboard and A,B,C,E, F corrugated paper.
Max. Liner speed 220m/min
Feeding Way Automatically and continuously feeding.
Way of Folding in reverse Fold 2 and fold 4 are 180 degree.
Glue Material Water-base cold glue.
Electric Power 3P 380V 50Hz
Main Power 3.5kW
Weight 2.6T, 2.8T, 3T, 3.2T, 3.4T, 3.6T
Over Dimension 10×1.6×1.4m, 10×1.8×1.4m,10x2x1.4m,10×2.2×1.4m,

10×2.4×1.4m,10×2.6×1.4m,

Technical Parameter

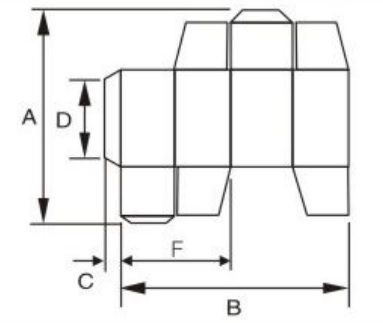

Common Box Type and Size
Model SHH-1050B2 SHH-1250B2 SHH-1450B2
A 150-800mm 150-800mm 150-800mm
B 200-900mm 200-1100mm 200-1300mm
C Min.: 15mm Min.: 15mm Min.: 15mm
D MIn.: 120mm MIn.: 120mm MIn.: 120mm
F Min.: 100mm Min.: 100mm Min.: 100mm
Common Box Type and Size
Model SHH-1650B2 SHH-1850B2 SHH-2050B2
A 150-800mm 150-800mm 150-800mm
B 200-1500mm 200-1700mm 200-1900mm
C Min.: 15mm Min.: 15mm Min.: 15mm
D MIn.: 120mm MIn.: 120mm MIn.: 120mm
F Min.: 100mm Min.: 100mm Min.: 100mm

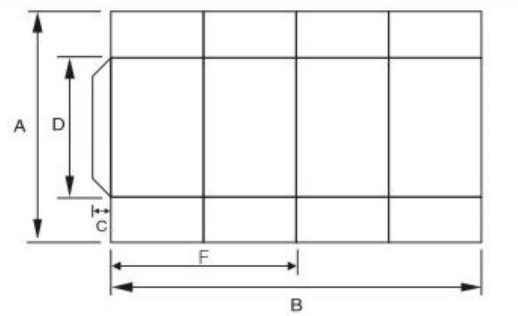

Flat Box Type and Size
Model SHH-1050B2 SHH-1250B2 SHH-1450B2
A 150-800mm 150-800mm 150-800mm
B 280-900mm 280-1100mm 280-1300mm
C Min.: 15mm Min.: 15mm Min.: 15mm
D MIn.: 120mm MIn.: 120mm MIn.: 120mm
F Min.: 100mm Min.: 100mm Min.: 100mm
Flat  Box Type and Size
Model SHH-1650B2 SHH-1850B2 SHH-2050B2
A 150-800mm 150-800mm 150-800mm
B 280-1500mm 280-1700mm 280-1900mm
C Min.: 15mm Min.: 15mm Min.: 15mm
D MIn.: 120mm MIn.: 120mm MIn.: 120mm
F Min.: 100mm Min.: 100mm Min.: 100mm
