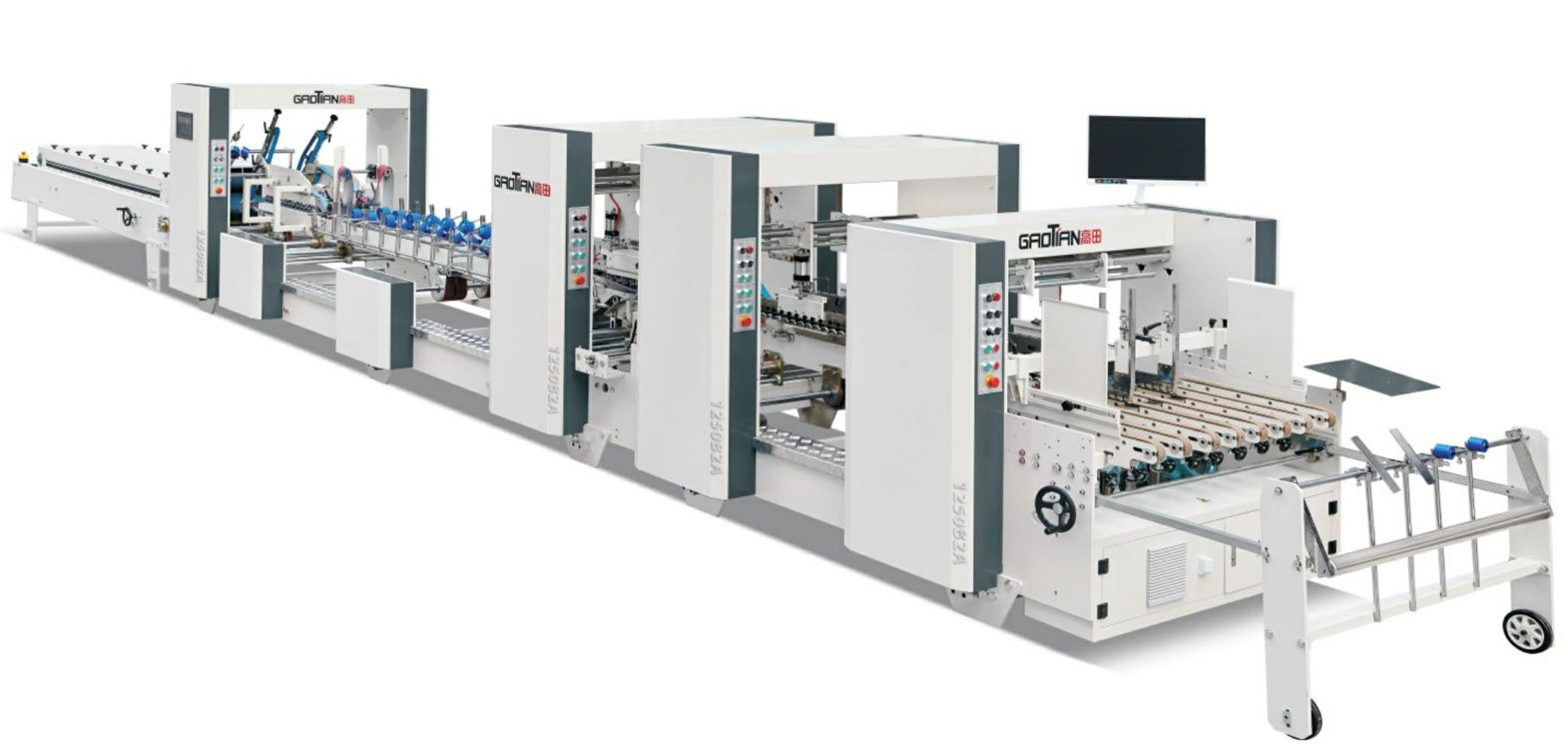

SHH-B2A Series Automatic Pre-fold Corrugated Carton Box Folder Gluer With Patting Device

SHH-1050B2A, SHH-1250B2A, SHH-1450B2A, SHH-1650B2A, SHH-1850B2A, SHH-2050B2A

HIGH-END MODEL

This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box.

It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons.perfectly combing the requirements of auto packaging together.

Characteristics

Model SHH-1250/1450/1650/1850/2050B2A
Paper Material 200-800 gsm cardboard and A,B,C,E, F corrugated paper.
Max. Liner speed 260m/min
Feeding Way Automatically and continuously feeding.
Way of Folding in reverse Fold 2 and fold 4 are 180 degree.
Glue Material Water-base cold glue.
Electric Power 3P 380V 50Hz
Main Power 9kW
Weight 7.5T, 8T, 8.5T, 9T, 9.5T
Over Dimension 14×1.7×1.7m, 14×1.9×1.7m, 14×2.1×1.7m, 14×2.3×1.7m,

14×2.5×1.7m

Technical Parameter

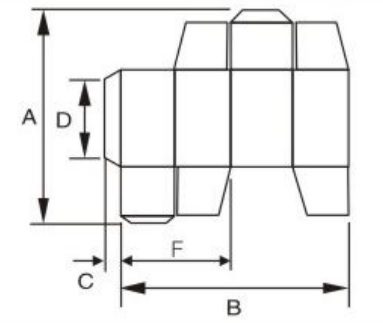

Common Box Type and Size
Model SHH-1250B2A SHH-1450B2A
A 150-1300mm 150-1300mm
B 280-1100mm 280-1300mm
C Min.: 15mm Min.: 15mm
D MIn.: 80mm MIn.: 80mm
F Min.: 120mm Min.: 120mm
Common Box Type and Size
Model SHH-1650B2A SHH-1850B2A SHH-2050B2A
A 150-1300mm 150-1300mm 150-1300mm
B 280-1500mm 280-1700mm 280-1900mm
C Min.: 15mm Min.: 15mm Min.: 15mm
D MIn.: 80mm MIn.: 80mm MIn.: 80mm
F Min.: 120mm Min.: 120mm Min.: 120mm

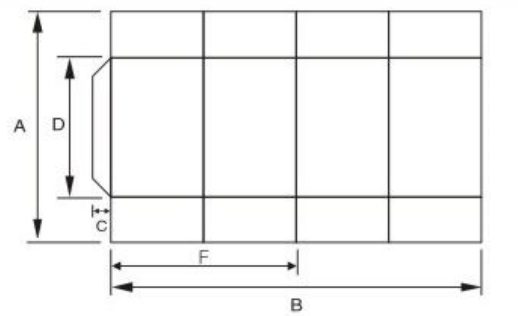

Flat Box Type and Size
Model SHH-1250B2A SHH-1450B2A
A 150-1300mm 150-1300mm
B 280-1100mm 280-1300mm
C Min.: 15mm Min.: 15mm
D MIn.: 120mm MIn.: 120mm
F Min.: 120mm Min.: 120mm
Common Box Type and Size
Model SHH-1650B2A SHH-1850B2A SHH-2050B2A
A 150-1300mm 150-1300mm 150-1300mm
B 280-1500mm 280-1700mm 280-1900mm
C Min.: 15mm Min.: 15mm Min.: 15mm
D MIn.: 120mm MIn.: 120mm MIn.: 120mm
F Min.: 120mm Min.: 120mm Min.: 120mm
