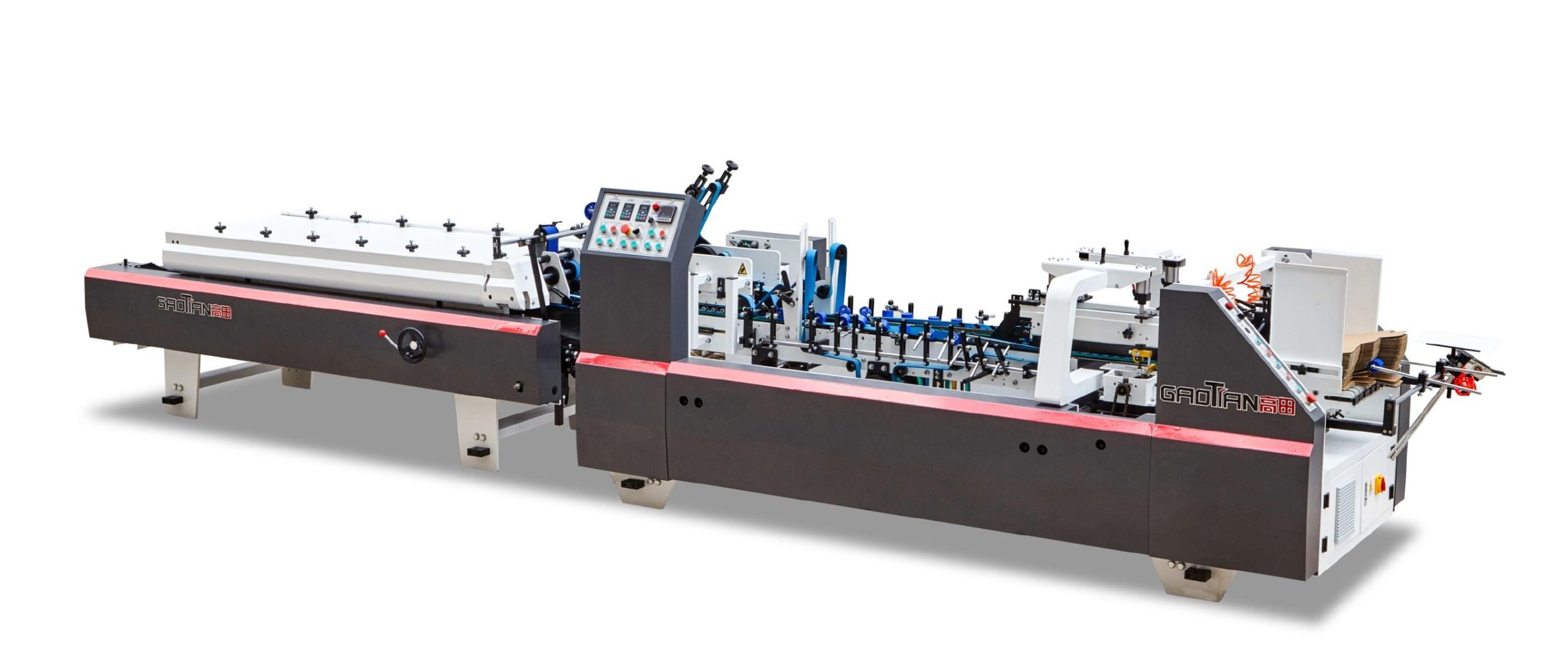

SHH-600BK, SHH-800BK
Characteristics
| Model | SHH-600BK | SHH-800BK | SHH-800BK |
| Carton Type | Paperboard | Paperboard | E, F Corrugated Paper |
| A+B+C+D | 100-580mm | 150-780mm | 180-680mm |
| C+D Min. | 50mm | 75mm | 90mm |
| D Min. | 8mm | 8mm | 8mm |
| F Min. | 50mm | 50mm | 50mm |
| G | 70-700mm | 70-700mm | 150-580mm |
Manufacturer Technical Parameter
| Model | SHH-600BK | SHH-800BK |
| Max. Liner Speed | 280m/min | 280m/min |
| Applicable Paper Materials | 200-800g Paperboard and E, F Corrugated Paper | |
| Way of Folding in Reverse | Second and fourth fold 180 degrees | |
| Glue Material | Solute Type | |
| Electric Power | 3P, 380V, 50Hz | |
| Main Power | 3.5kW | 3.5kW |
| Weight | 1.4T | 1.6T |
| Over Dimension (m) | 7×1.3×1.4 | 7×1.5×1.4 |
