SHH-1050E, SHH-1250E, SHH-1450E, SHH-1650E, SHH-1850E, SHH-2050E
SHH-E series corrugated folder gluer machine,imported electronic components,feeding section adopts independent electrical control,operation on rail with stable performance and easy to control and operate.This machine is professional for cardboard and corrugated cartons,its correction function make corrugated cartons perfectly meeting the requirements of packaging industry.
Characteristics
| Model | SHH-1050/1250/1450/1650/1850/2050E |
| Paper Material | 200-800 gsm cardboard and A,B,C,E, F corrugated paper. |
| Max. Liner speed | 220m/min |
| Feeding Way | Automatically and continuously feeding. |
| Way of Folding in reverse | Fold 2 and fold 4 are 180 degree. |
| Glue Material | Water-base cold glue. |
| Electric Power | 3P 380V 50Hz |
| Main Power | 8kW |
| Weight | 3.8T, 4.2T, 4.6T, 5T, 5.4T, 5.8T |
| Over Dimension | 13.5×1.6×1.4m, 13.5×1.8×1.4m, 13.5x2x1.4m, 13.5×2.2×1.4m, 13.5×2.4×1.4m, 13.5×2.6×1.4m. |
Technical Parameter
| Lock Bottom Carton Type and Folded Box Size | |||
| Model | SHH-1050E | SHH-1250E | SHH-1450E |
| A | 280-600mm | 280-600mm | 280-600mm |
| B | 280-880mm | 250-1080mm | 250-1280mm |
| C | Min.:15mm | Min.:15mm | Min.:15mm |
| D | Min.:150mm | Min.:150mm | Min.:150mm |
| F | Min.:120mm | Min.:120mm | Min.:120mm |
| Lock Bottom Carton Type and Folded Box Size | |||
| Model | SHH-1650E | SHH-1850E | SHH-2050E |
| A | 280-600mm | 280-600mm | 280-600mm |
| B | 250-1480mm | 250-1680mm | 250-1880mm |
| C | Min.:15mm | Min.:15mm | Min.:15mm |
| D | Min.:150mm | Min.:150mm | Min.:150mm |
| F | Min.:120mm | Min.:120mm | Min.:120mm |

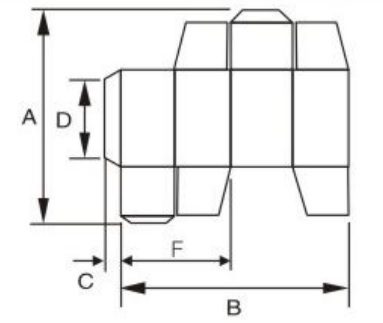

| Common Box Type and Size | |||
| Model | SHH-1050E | SHH-1250E | SHH-1450E |
| A | 120-700mm | 120-700mm | 120-700mm |
| B | 200-900mm | 200-1100mm | 200-1300mm |
| C | Min.: 15mm | Min.: 15mm | Min.: 15mm |
| D | MIn.: 150mm | MIn.: 150mm | MIn.: 150mm |
| F | Min.: 120mm | Min.: 120mm | Min.: 120mm |
| Common Box Type and Size | |||
| Model | SHH-1650E | SHH-1850E | SHH-2050E |
| A | 120-700mm | 120-700mm | 120-700mm |
| B | 200-1500mm | 200-1700mm | 200-1900mm |
| C | Min.: 15mm | Min.: 15mm | Min.: 15mm |
| D | MIn.: 150mm | MIn.: 150mm | MIn.: 150mm |
| F | Min.: 120mm | Min.: 120mm | Min.: 120mm |

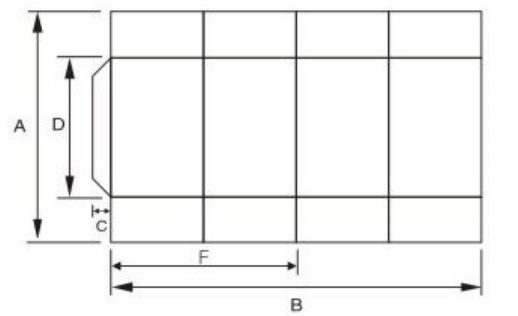

| Flat Box Type and Size | |||
| Model | SHH-1050E | SHH-1250E | SHH-1450E |
| A | 120-700mm | 120-700mm | 120-700mm |
| B | 200-1100mm | 200-1100mm | 200-1300mm |
| C | Min.: 15mm | Min.: 15mm | Min.: 15mm |
| D | MIn.: 150mm | MIn.: 150mm | MIn.: 150mm |
| F | Min.: 120mm | Min.: 120mm | Min.: 120mm |
| Flat Box Type and Size | |||
| Model | SHH-1650E | SHH-1850E | SHH-2050E |
| A | 120-700mm | 120-700mm | 120-700mm |
| B | 200-1500mm | 200-1700mm | 200-1900mm |
| C | Min.: 15mm | Min.: 15mm | Min.: 15mm |
| D | MIn.: 150mm | MIn.: 150mm | MIn.: 150mm |
| F | Min.: 120mm | Min.: 120mm | Min.: 120mm |
