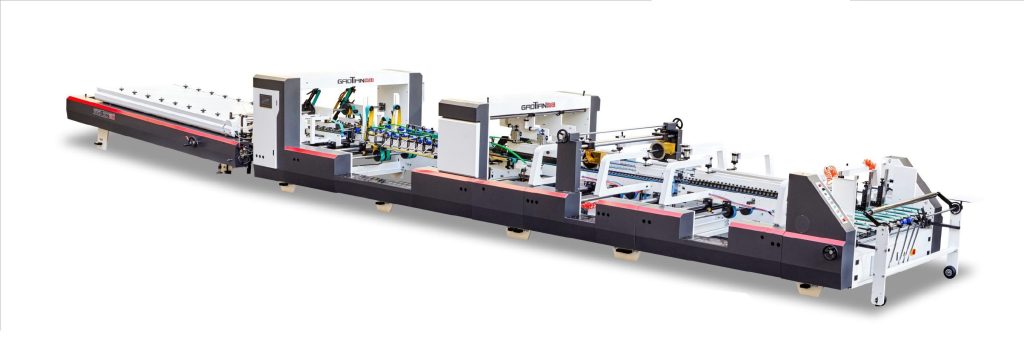

SHH-1050EK, SHH-1250EK, SHH-1450EK, SHH-1650EK, SHH-1850EK, SHH-2050EK
Characteristics
| Model | 1050EK | 1250EK | 1450EK | 1650EK | 1850EK | 2050EK |
| Carton Type | Paperboard, A, B, E, F Corrugated | |||||
| A+B+C+D | 200-1000mm | 200-1200mm | 200-1400mm | 200-1600mm | 200-1800mm | 200-2000mm |
| C+D Min. | 100mm | 100mm | 100mm | 100mm | 140mm | 140mm |
| D Min. | 25mm | 25mm | 25mm | 25mm | 25mm | 25mm |
| F Min. | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| G | 150-800mm | 150-800mm | 150-800mm | 150-800mm | 150-800mm | 150-800mm |
| Model | 1050EK | 1250EK | 1450EK | 1650EK | 1850EK | 2050EK |
| Carton Type | Paperboard, A, B, E, F Corrugated | |||||
| A+B+C+D | 250-950mm | 250-1150mm | 250-1350mm | 250-1550mm | 380-1750mm | 380-1950mm |
| C+D Min. | 125mm | 125mm | 125mm | 125mm | 190mm | 190mm |
| D Min. | 25mm | 25mm | 25mm | 25mm | 25mm | 25mm |
| F Min. | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| G | 150-800mm | 150-800mm | 150-800mm | 150-800mm | 150-800mm | 150-800mm |
| H Min. | 30mm | 30mm | 30mm | 30mm | 30mm | 30mm |
Technical Parameter
| Model | 1050EK | 1250EK | 1450EK | 1650EK | 1850EK | 2050EK |
| Max. Liner Speed | 260m/min | 260m/min | 260m/min | 260m/min | 260m/min | 260m/min |
| Applicable Paper Materials | 200-800g paperboard, A, B, E, F corrugated paper | |||||
| Way of Folding in Reverse | The first and third folds are 180 degrees and 90 degrees respectively.
Second and fourth fold 180 degrees |
|||||
| Glue Material | Solute Type | |||||
| Electric Power | 3P, 380V, 50Hz | |||||
| Main Power | 11.5kW | 11.5kW | 11.5kW | 15kW | 15kW | 15kW |
| Weight | 4.8T | 5.2T | 5.6T | 6T | 6.4T | 6.8T |
| Over Dimension (m) | 14.5×1.8×1.7 | 14.5x2x1.7 | 14.5×2.2×1.7 | 14.5×2.4×1.7 | 14.5×2.6×1.7 | 14.5×2.8×1.7 |
Technical Information is Subject to Change without Notice.
