SHH-1050FS, SHH-1250FS, SHH-1450FS, SHH-1650FS, SHH-1850FS
HIGH- END MODEL
SHH-FS series folder gluer machine, it is suitable for straight line, crash lock bottom, double wall, 4&6 corner box. Adopt electrical plate adjustment, PLC and imported electronic components, feeding section adopts independent electrical control, operation on rail with stable performance and easy to control and operate. ( we can customize for other sizes)
Characteristics
| Model | SHH-1050/1250/1450/1650/1850FS |
| Paper Material | 200-800 gsm cardboard and A,B,C,E, F corrugated paper. |
| Max. Liner speed | 260m/min |
| Feeding Way | Automatically and continuously feeding. |
| Way of Folding in reverse | Fold 1 and fold 3 are 180 degree and 135 degree, Fold 2 and fold 4 are 180 degree. |
| Glue Material | Water-base cold glue. |
| Electric Power | 3P 380V 50Hz |
| Main Power | 14kW |
| Weight | 9T, 9.5T, 10T, 10.5T, 11T |
| Over Dimension | 16×1.7×1.7m, 16×1.9×1.7m, 16×2.1×1.7m, 16×2.3×1.7m,
16×2.5×1.7m, |
Technical Parameter

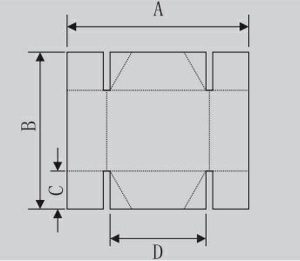

| FOUR CORNER BOX TYPE AND SIZE | |||
| Model | SHH-1050FS | SHH-1250FS | SHH-1450FS |
| A | 290-1000mm | 290-1200mm | 290-1400mm |
| B | 130-800mm | 130-800mm | 130-800mm |
| C | Min.:30mm | Min.:30mm | Min.:30mm |
| D | Min.:130mm | Min.:130mm | Min.:130mm |
| FOUR CORNER BOX TYPE AND SIZE | ||
| Model | SHH-1650FS | SHH-1850FS |
| A | 290-1600mm | 290-1800mm |
| B | 130-800mm | 130-800mm |
| C | Min.:30mm | Min.:30mm |
| D | Min.:130mm | Min.:130mm |

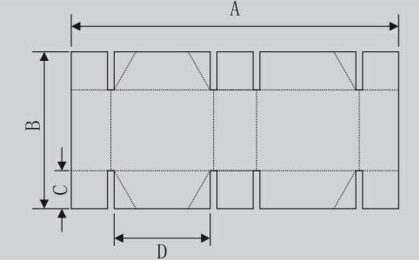

| SIX CORNER BOX TYPE AND SIZE | |||
| Model | SHH-1050FS | SHH-1250FS | SHH-1450FS |
| A | 290-1000mm | 290-1200mm | 290-1400mm |
| B | 130-800mm | 130-800mm | 130-800mm |
| C | Min.:30mm | Min.:30mm | Min.:30mm |
| D | Min.:130mm | Min.:130mm | Min.:130mm |
| SIX CORNER BOX TYPE AND SIZE | ||
| Model | SHH-1650FS | SHH-1850FS |
| A | 290-1600mm | 290-1800mm |
| B | 130-800mm | 130-800mm |
| C | Min.:30mm | Min.:30mm |
| D | Min.:130mm | Min.:130mm |
