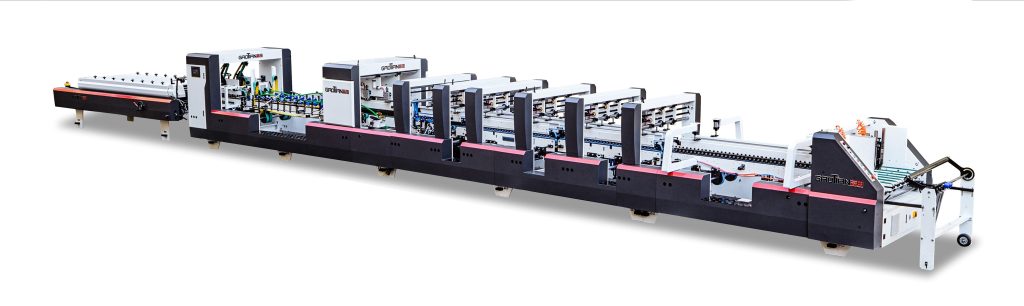

SHH-800FSK, SHH-1050FSK, SHH-1250FSK, SHH-1450FSK, SHH-1650FSK, SHH-1850FSK, SHH-2050FSK
Characteristics
Model | 800FSK | 1050FSK | 1250FSK | 1450FSK | 1650FSK | 1850FSK | 2050FSK |
Carton Type | Paperboard, A, B, E, F Corrugated | ||||||
A+B+C | 180-800mm | 180-1000mm | 180-1200mm | 180-1400mm | 180-1600mm | 180-1800mm | 180-2000mm |
B Min. | 130mm | 130mm | 130mm | 130mm | 130mm | 130mm | 130mm |
F | 70-800mm | 70-800mm | 70-800mm | 70-800mm | 70-800mm | 70-800mm | 70-800mm |
G Max. | 800mm | 800mm | 800mm | 800mm | 800mm | 800mm | 800mm |
H Min. | 10mm | 10mm | 10mm | 10mm | 10mm | 10mm | 10mm |
L | 25-100mm | 25-100mm | 25-100mm | 25-100mm | 25-100mm | 25-100mm | 25-100mm |
Model | 800FSK | 1050FSK | 1250FSK | 1450FSK | 1650FSK | 1850FSK | 2050FSK |
Carton Type | Paperboard, A, B, E, F Corrugated | ||||||
A+B+C+D+E | 290-800mm | 290-1000mm | 290-1200mm | 290-1400mm | 290-1600mm | 290-1800mm | 290-2000mm |
B+C Min. | 80mm | 80mm | 80mm | 80mm | 140mm | 140mm | 140mm |
B Min. | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
C Min. | 30mm | 30mm | 30mm | 30mm | 30mm | 30mm | 30mm |
D Min. | 70mm | 70mm | 70mm | 70mm | 70mm | 70mm | 70mm |
F | 70-800mm | 70-800mm | 70-800mm | 70-800mm | 70-800mm | 70-800mm | 70-800mm |
G Max. | 800mm | 800mm | 800mm | 800mm | 800mm | 800mm | 800mm |
H Min. | 10mm | 10mm | 10mm | 10mm | 10mm | 10mm | 10mm |
L | 25-100mm | 25-100mm | 25-100mm | 25-100mm | 25-100mm | 25-100mm | 25-100mm |
Technical Parameter
Model | 800FSK | 1050FSK | 1250FSK | 1450FSK | 1650FSK | 1850FSK | 2050FSK |
Max. Liner Speed | 260m/min | ||||||
Applicable Paper Materials | 200-800g paperboard, A, B, E, F corrugated paper ( 5 layers) | ||||||
Way of Folding in Reverse | The first and third folds are 180 degrees and 90 degrees respectively.
Second and fourth fold 180 degrees |
||||||
Glue Material | Solute Type | ||||||
Electric Power | 3P, 380V, 50Hz | ||||||
Main Power | 20kW | 20kW | 20kW | 24kW | 24kW | 24kW | 24kW |
Weight | 4.5T | 5.5T | 6T | 6.5T | 7T | 7.5T | 8T |
Over Dimension (m) | 14.5×1.6×1.7 | 16.5×1.8×1.7 | 16.5x2x1.7 | 16.5×2.2×1.7 | 16.5×2.4×1.7 | 16.5×2.6×1.7 | 16.5×2.8×1.7 |
