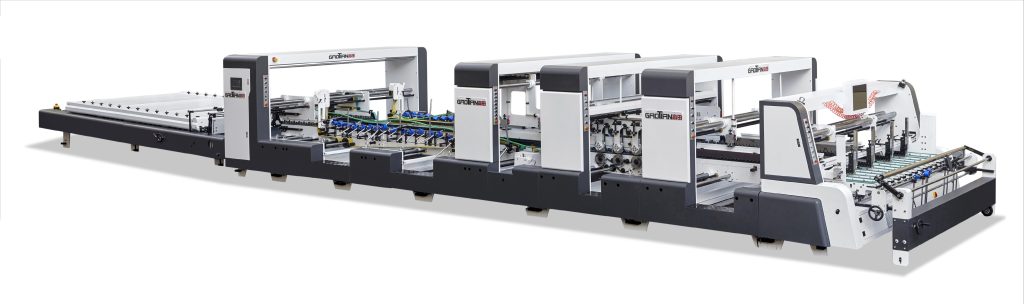

SHH-2600HX, SHH-3200HX
Characteristics
| Model | SHH-2600HX | SHH-3200HX |
| Carton Type | A, B, C, E, AB, EB Three or five layers of corrugated | |
| A+B+C+D | 400-2550mm | 400-3150mm |
| C+D Min. | 200mm | 200mm |
| D Min. | 25mm | 25mm |
| F Min. | 100mm | 100mm |
| G | 150-800mm | 150-800mm |
Technical Parameter
| Model | SHH-2600HX | SHH-3200HX |
| Max. Liner Speed | 280m/min | 280m/min |
| Applicable Paper Materials | A, B, C, E, AB, EB Three or five layers of corrugated | |
| Way of Folding in Reverse | Second and fourth fold 180 degrees | |
| Glue Material | Solute Type | |
| Electric Power | 3P, 380V, 50Hz | |
| Main Power | 18.5kW | 20kW |
| Weight | 10T | 12T |
| Over Dimension | 17×3.6x2m | 17×4.2x2m |
Technical Information is Subject to Change without Notice.
