TYMB-930 Foil Stamping and Cutting Machine


The hot stamping machine and die cutting machine is new type high precision machine for hot stamping and die cutting various hot stamping foil, press concave-convex, die cutting label, catalogue, paper box, book cover, invitation letter and new year card, etc. It is suitable for various materials such as paper, paper board, plastic sheet, leather, etc. It is an ideal machine to improve the grade of materials for printing, packaging and plastic.

Features:

●High strength due to one piece casting by using top-ranking material for machine body.

●Single plate electromagnetic clutch is sensitive and reliable.

●Operating position is reasonably arranged, moving-bed can be opened to its optimum.

● computer controlled is stable.

●Skipping is accurate, so as to save foils.

●With three functions of continuous creasing and cutting, opening dwell operation and closing dwell operation and large dwell adjusting range.

●Safety system is reliable.

★All models can be optional: Air brake clutch, Pneumatic jacking device, Infra-red light safety device, Speed-adjustment device, Centralized Automatic oil pump, Centralized manual oil pump.

Technical Parameter

Model

TYMB-930

Max. Platen Working Area

930x670mm

Max. Gilding Printing Area

920x660mm

Max. Foil Feed Length

640mm

Foil Feeding Roller Group Number

3 Groups

Electric Plate Region

3 region

Range of Skip Order

0-99 times

Speed ( Strokes/Min)

23±2

Main Motor

4kW

Total Power

13kW

Total Weight

3500kgs

Overall Dimensions

2200x2000x1950mm

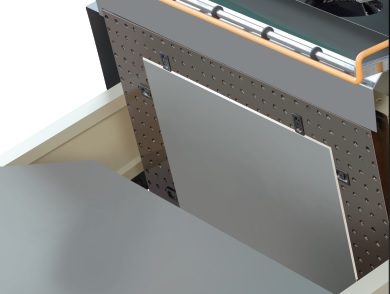

Nodular Cast Honeycombs plate: rapid heating temperature uniformity, easy and accurate installation templates.
