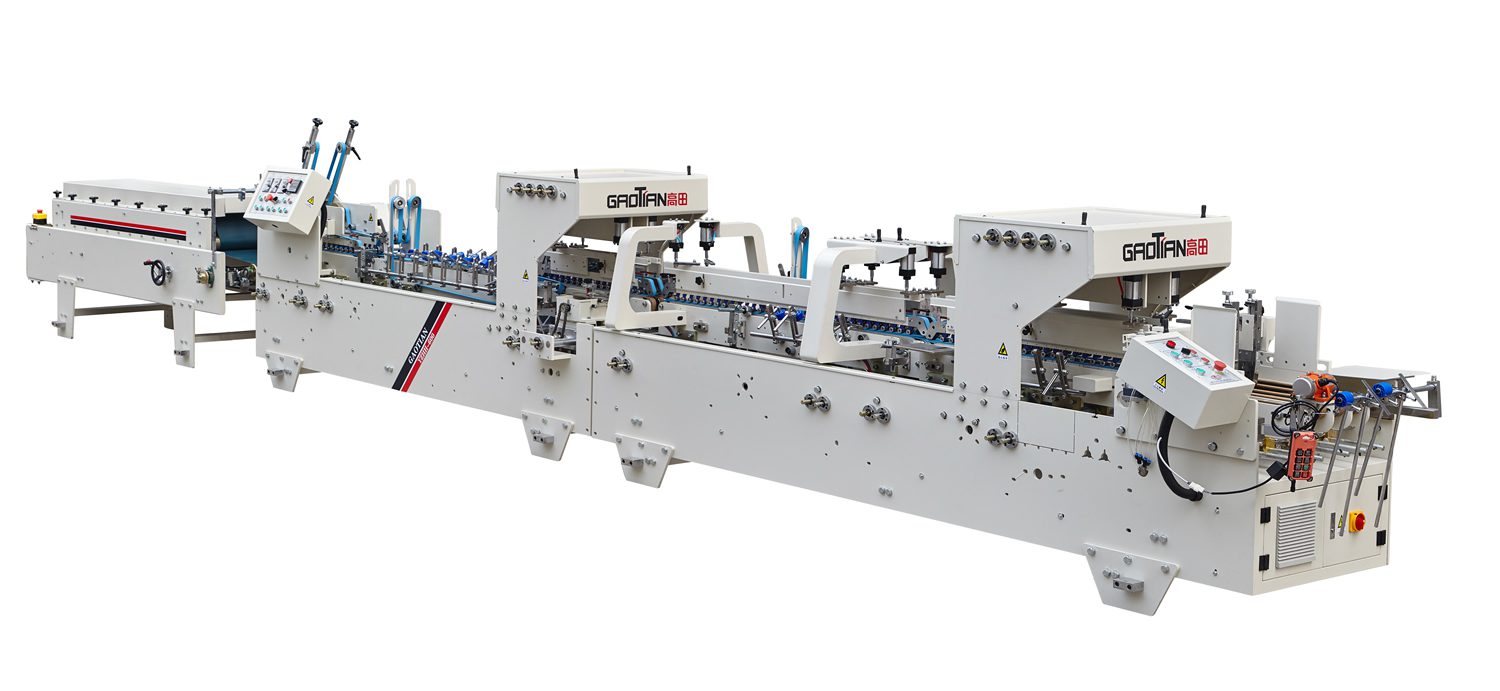

YZHH-600, YZHH-800
This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box.
It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons.Pre-fold manufacturer section is applied to auto packaging, fold 1 and fold 3 of all cartons can reach 180° and 135°, perfectly combing the requirements of auto packaging together.
Characteristics
Model | YZHH-600, YZHH-800 |
Paper Material | 200-800 gsm cardboard and E, F corrugated paper. |
Max. Liner speed | 220m/min |
Feeding Way | Automatically and continuously feeding. |
Way of Folding in reverse | Fold 1 and fold 3 are 180 degree and 135 degree.
Fold 2 and fold 4 are 180 degree. |
Glue Material | Water-base cold glue. |
Electric Power | 3P 380V 50Hz |
Main Power | 5.5kW |
Weight | 2T,2.2T |
Over Dimension | 10.5×1.1×1.4m, 10.5×1.3×1.4m |
Technical Parameter
Common Box Type and Size | ||||
Model | YZHH-600 | YZHH-800 | ||
Paper Material | Cardboard | E/F Corrugated Paper | Cardboard | E/F Corrugated Paper |
A | 70-700mm | 150-580mm | 70-700mm | 150-580mm |
B | 120-580mm | 180-480mm | 120-780mm | 180-680mm |
C | Min.: 10mm | Min.: 15mm | Min.: 10mm | Min.: 15mm |
D | MIn.: 50mm | MIn.: 120mm | MIn.: 50mm | MIn.: 120mm |
F | Min.: 50mm | Min.: 50mm | Min.: 50mm | Min.: 50mm |
