ZKT-340B Window Patching Machine

ZKT-340B

ZKT-340B window patching machine can be extensively used in sticking window film on various paper boxes, and the machine is configured with corner cutting and line pressing functions.

Structural Characteristics:

  1. Flat belt paper suction mechanism, paper feeding without shutting down the machine, position checking mechanism and accurate locating.
  2. Disk glue applying mode is adopted to ensure applied glue is well distributed and the amount of applied glue can be effectively controlled.
  3. PLC programming technique is adopted to ensure accurate film feeding.
  4. Horizontal knife cutting film, stable and reliable.

Technical Parameter

model ZKT-340B
Speed ( flat film patching) 6000-10000pcs/h
Speed (V-Cut and creasing) 4000-7000pcs/h
Applicable paper specification 100×120-330x420mm
Applicable paper grammage 250-1000g/m2
Size of film 60×30-120x160mm
Thickness of film 0.03-0.25mm
Range of film thickness 0.05-0.25mm
power 1.5kW
Power of air pump 0.75kW
weight 1400kgs
Overall dimension 3980x950x1400mm

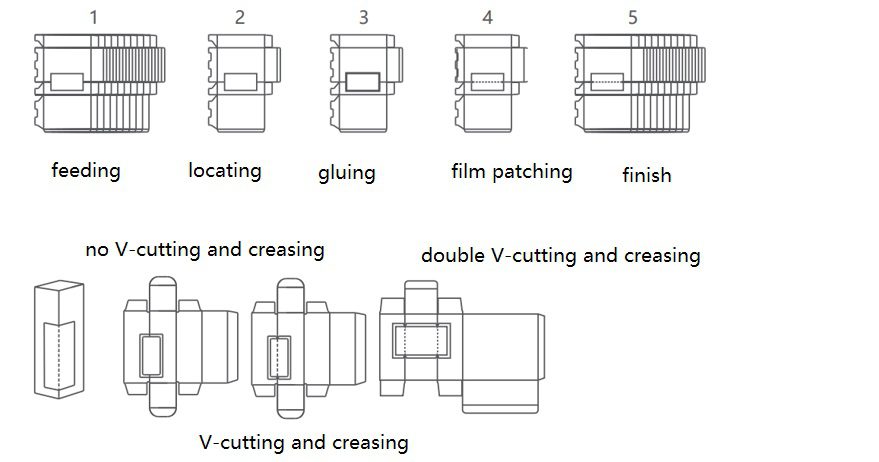

Manufacture Process
