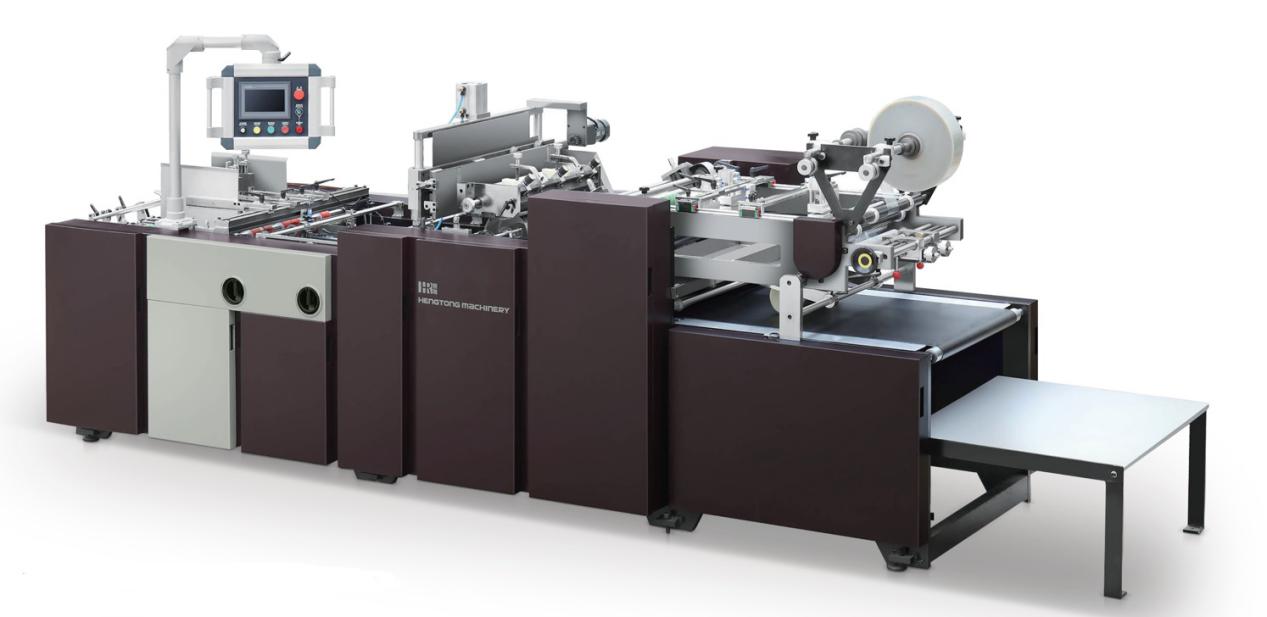

ZKT-750B Window Patching Machine can apply window film to all kindsof paper boxes. Based on the original window patching machines, it is a fruit by referring to customers’ feedback and our continual improvement and philosophy of humanized design. It is easy to operate and excellent in efficiency, accuracy and stability. ZKT-750B Window Patching Machine employs a multi-servo control system. Our proprietary technology is embodied in both basic companents and automation parts of this product. Therefore, it is in the position to meet customers’ requirements at a higher

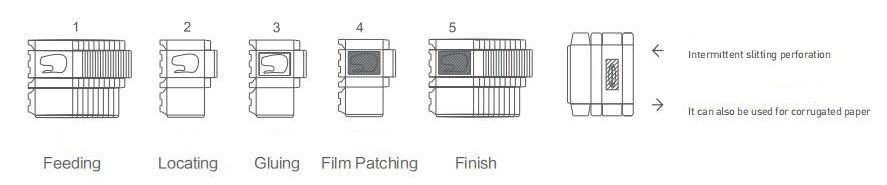

Structural Characteristics:

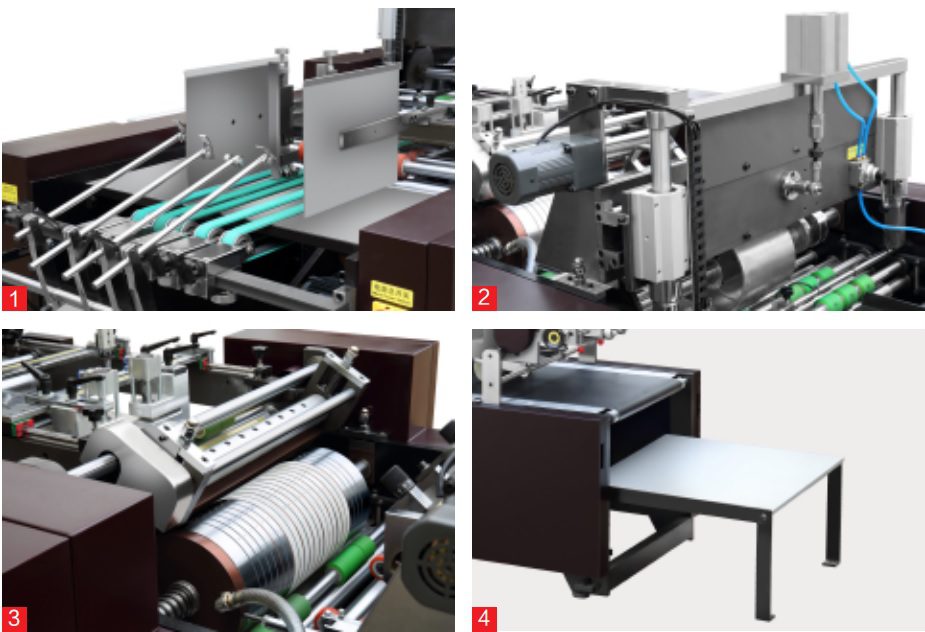

  1. The paper feeder is driven by a servo of a famous brand. Paper is delivered on the bottom via an intermittent belt, so paper can be fed continuously without shutdown. The paper feeder is controlled by PLC. lt has a human-machine interface, on which you can enter the length of paper to be fed, so that paper can be supplied quickly and accurately. Also, the paper feeder applies to card paper and corrugated paper.
  2. it is easy to adjust the basic part of the film feeder left and right in parallel.
    The film feeder is controlled by a servo control system of a famous brand. It is only required to enter the length to be cut on the touch screen, which improves accuracy and makes adjustment easy.

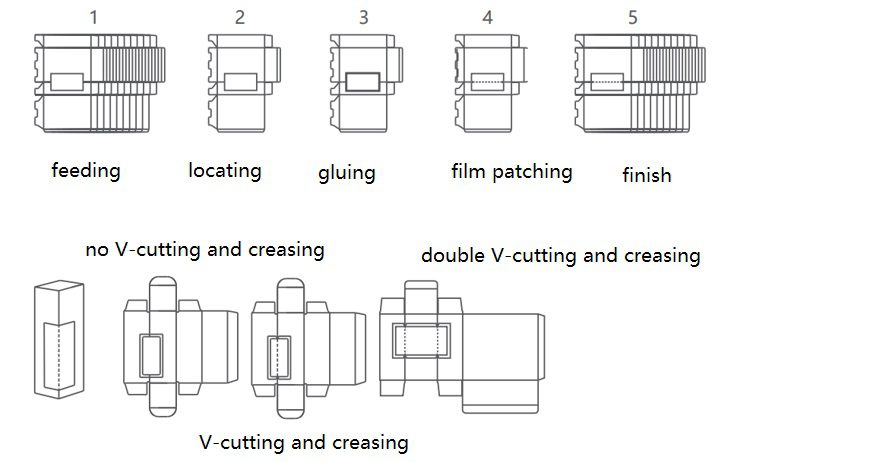

    The film feeder can cut corners and creasing lines automatically. It applies to products subject to single (double) line creasing and corner cutting. Also it can be adjusted at will.
    3.The sizing section consists of chromed sizing roller,glue separating guide, side limiter and sizing template roller. It is easy to pull out, set and clean the sizing section.
    The glue separating guide can be adjusted to control I the range and amount of glue. In the event of shutdown,the cylinder can raise the sizing roller and it is driven by the other independent motor to avoid glue solidification.
    Without shutdown, the gluing roller can be adjusted freely on an axial or radial basis.
    4.The paper collector is designed as a belt and final product can be stacked in order.


Main Technical Parameter

Model ZKT-750B
Speed 6000-10000pcs/h

(flat film patching)


(V-cut and creasing)

Paper length 140-600mm
Paper width 120-750mm
Film length 60-400mm
Film width 30-400mm
Thickness of film 0.03-0.25mm
Main power 2.2kW
Power of air pump 1.5kW
weight 2800kgs
Overall dimension 5500x1550x1770mm


Servo System: Yaskawa
Relay: Omron
PLC: Panasonic
Frequency converter: Toshiba
Power switch : Schneider
Switch button: Schneider
Circuit Breaker: Schneider
Contactor: Schneider
Encoder: Omron
Photo Electric Sensor: Panasonic
Solenoid valve: SMC
