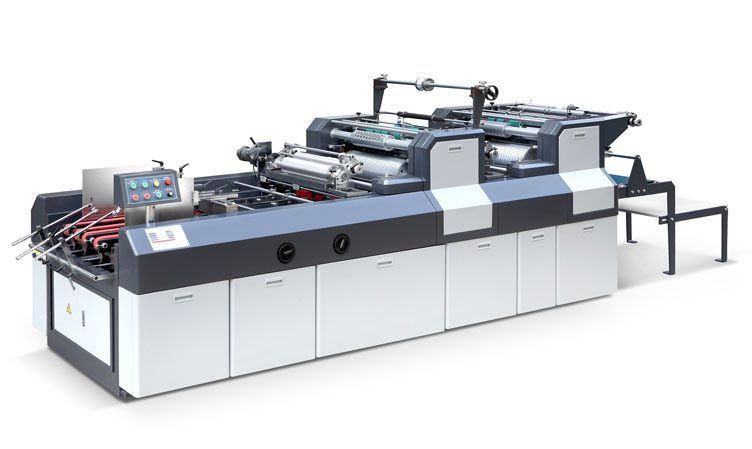

ZKT-A Series Window Patching Machine

ZKT-340A, ZKT-650A, ZKT-980A

ZKT-A series machine are capable of patching two windows at the same time and pasting two layers of film on express mail envelope.

This series machine are widely used for sticking films on the windows of various paper boxes, e.g. tissue box, medicine box, shirt box, etc.

Structural Characteristics:

  1. Flat belt paper suction mechanism, paper feeding without shutting down the machine, position checking mechanism and accurate locating.
  2. Disk glue applying mode is adopted to ensure applied glue is well distributed and the amount of applied glue can be effectively controlled.
  3. Horizontal knife cutting film, stable and reliable.
  4. The meticulously designed fine adjustment device of ZKT series window patching machine is convenient for adjustment.

Technical Parameter

Model ZKT-340A ZKT-650A ZKT-980A
Operation speed 4000-6000pcs/h 3000-6000pcs/h 3000-5000pcs/h
Applicable paper Specification 100×120-330x420mm 300×200-700x630mm 300×200-700x980mm
Applicable paper grammage 250-1000g/m2 250-1000g/m2 250-1000g/m2
Dimension of Film- sticking 60×30-120x160mm 80×30-300x260mm 80×30-300x760mm
Thickness of film 0.03-0.25mm 0.03-0.25mm 0.03-0.25mm
Main Power 1.5kW 2.2kW 3kW
Power of air pump 2.2kW 2.2kW 2.2kW
Weight of complete machine 1200kgs 1600kgs 2000kgs
Overall dimensions 4650x950x1400mm 5150x1100x1700mm 5650x1500x1700mm

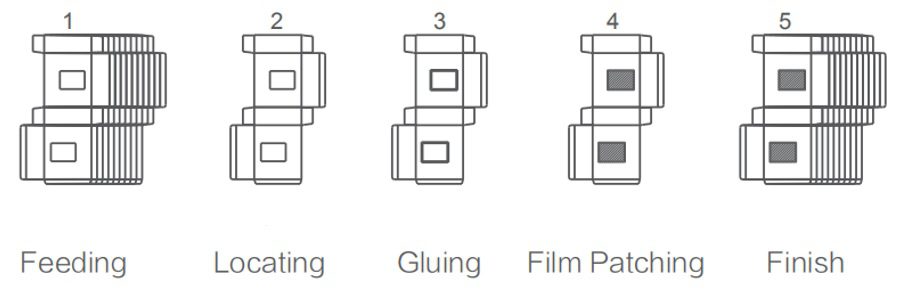

Manufacture Process
