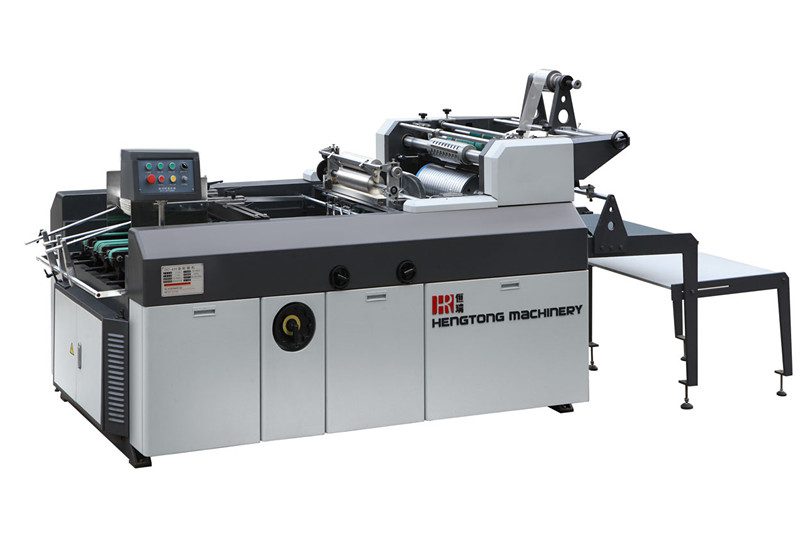

ZKT Series Window Patching Machine

ZKT-340, ZKT-650, ZKT-980

This series machine are widely used for sticking films on the windows of various paper boxes, e.g. tissue box, medicine box, shirt box, etc.

Structural Characteristics:

  1. Flat belt paper suction mechanism, paper feeding without shutting down the machine, position checking mechanism and accurate locating.
  2. Disk glue applying mode is adopted to ensure applied glue is well distributed and the amount of applied glue can be effectively controlled.
  3. Horizontal knife cutting film, stable and reliable.
  4. The meticulously designed fine adjustment device of ZKT series window patching machine is convenient for adjustment.

Technical Parameter

Model ZKT-340 ZKT-650 ZKT-980
Operation speed 4000-10000pcs/h 3000-9000pcs/h 3000-7000pcs/h
Applicable paper Specification 100×120-330x440mm 300×200-700x630mm 300×200-700x980mm
Applicable paper grammage 250-1000g/m2 250-1000g/m2 250-1000g/m2
Dimension of Film- sticking 60×30-120x160mm 80×30-300x260mm 80×30-300x760mm
Thickness of film 0.03-0.25mm 0.03-0.25mm 0.03-0.25mm
Main Power 1.5kW 2.2kW 3kW
Power of air pump 0.75Kw 0.75Kw 0.75Kw
Weight of complete machine 1200kgs 1600kgs 2000kgs
Overall dimensions 3550x950x1400mm 4050x1100x1700mm 4550x1500x1700mm

Manufacture Process
